Looking for the right stainless steel sheet for your next project? Whether you’re designing industrial panels, kitchen countertops, or marine-grade equipment, understanding alloys, finishes, and applications is key to choosing the perfect material. This guide breaks down everything you need to know so you can make informed decisions and order with confidence.
What Is A Stainless Steel Sheet?
A stainless steel sheet is a flat steel material produced by rolling or pressing steel into thin, uniform sheets. Its composition—primarily carbon, iron, and chromium—gives it superior resistance to corrosion, staining, and rust, making it a reliable choice for both indoor and outdoor applications.
Stainless steel sheets come in a range of grades, including 304, 316, 309, and 430, each offering different strength, durability, ductility, and corrosion resistance properties. Selecting the right grade depends on your environment, exposure conditions, and the performance you need.
Stainless Steel Sheet Alloy Guide
304 Stainless Steel
- When to choose: General-purpose; indoor/outdoor & food areas.
- Typical uses: Sinks, countertops, food equipment, architectural panels, and railings.
- Properties: Good overall corrosion resistance, fair machinability, excellent weldability, non-magnetic.
- Available finishes: 2B Mill, #4 Brushed, #8 Mirror
316 / 316L Stainless Steel
- When to choose: Coastal environments, chloride exposure, wash-downs, mild chemicals.
- Typical uses: Marine-adjacent hardware, pharmaceutical, chemical, and hygienic areas.
- Properties: Excellent corrosion resistance (superior pitting), fair machinability, excellent weldability, non-magnetic.
- Available finish: 2B Mill
309 Stainless Steel
- When to choose: High-temperature applications where oxidation resistance is critical.
- Typical uses: Furnace parts, oven linings, heat exchangers, industrial heat shields.
- Properties: Excellent at high temperatures, fair machinability, excellent weldability, non-magnetic.
- Available finish: 2D Mill
430 Stainless Steel
- When to choose: Magnetic stainless or cost-effective option for interior or low-exposure use.
- Typical uses: Appliances, interior/architectural trim, equipment panels, automotive trim.
- Properties: Good corrosion in mild environments, good machinability, fair weldability, magnetic.
- Available finish: 2B Mill
Optional Table: Alloy Comparison
| Alloy | Finish | Corrosion/Heat | Typical Uses | Machinability | Weldability | Magnetic | Notes |
| 304 | 2B / #4 / #8 | Good | Sinks, counters, panels | Fair | Excellent | No | General-purpose |
| 316 | 2B | Excellent | Marine, pharma, food | Fair | Excellent | No | Superior pitting resistance |
| 309 | 2D | Excellent at high temp | Furnace, ovens | Fair | Excellent | No | High-temp only |
| 430 | 2B | Good mild | Appliances, trims | Good | Fair | Yes | Cost-effective, magnetic |
Stainless Steel Sheet Finishes
Choosing the right finish affects both aesthetics and performance. Here’s a breakdown of common stainless steel sheet finishes:

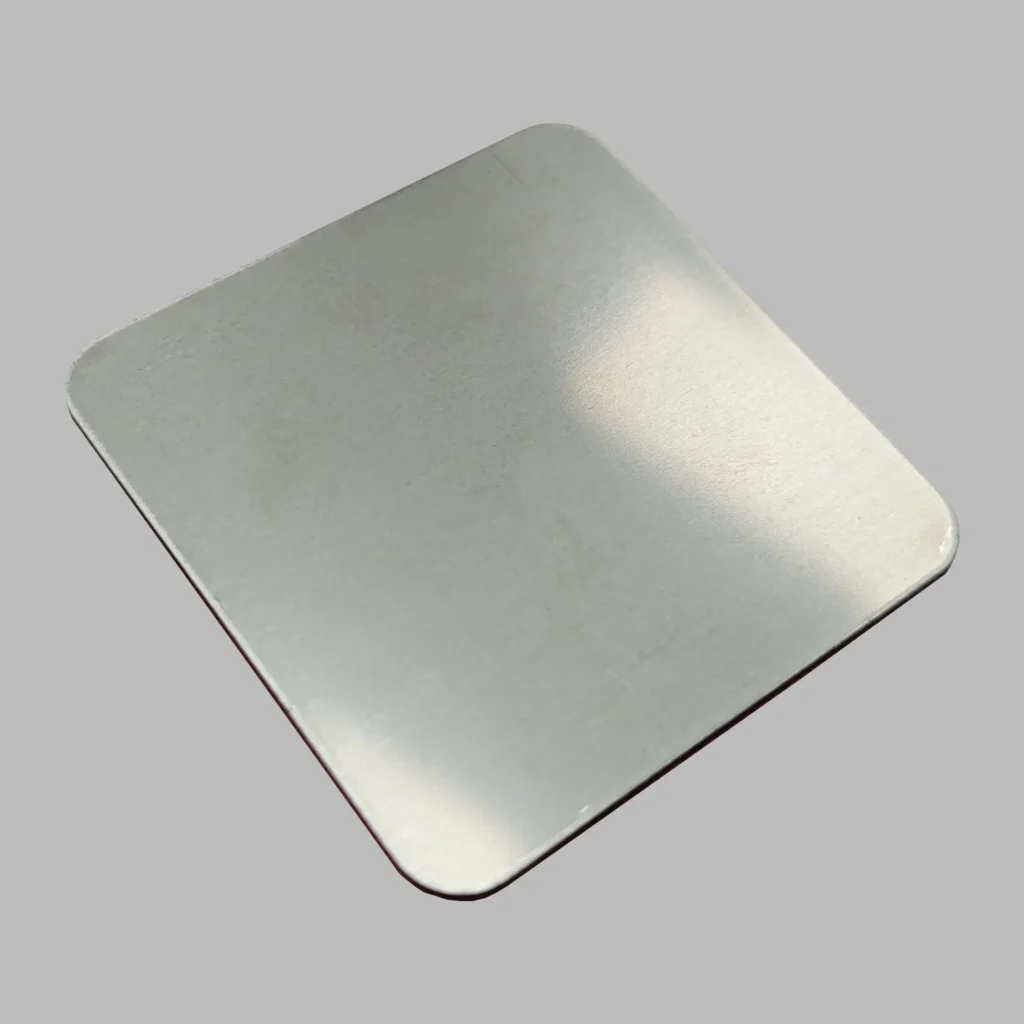

2B Mill Finish
- Bright gray, non-directional, industrial look
- Light surface scratches and dull appearance are normal
- No protective film
- Standard choice for 304, 316, and 430
2D Mill Finish
- Matte, dull surface, rougher than 2B
- Industrial look with minor surface imperfections
- No protective film
- Typically used for 309
#4 Brushed Finish
- Satin sheen with visible grain (150–180 grit)
- Grain direction selectable on the product page; protective film on brushed side
- One side only
- Cosmetic and functional applications

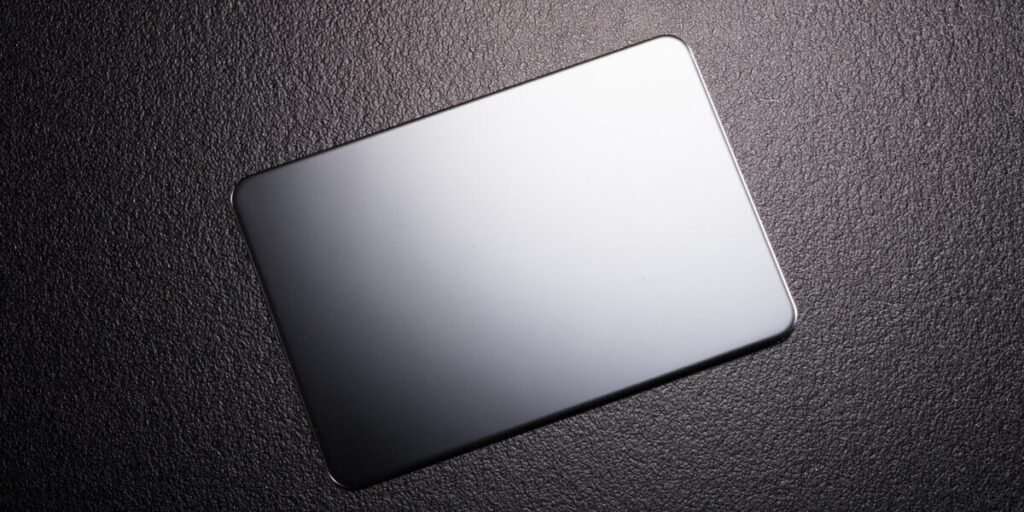

#8 Mirror Finish
- High reflectivity, polished out grain marks
- Protective film on mirror side
- One side only
- Most cosmetic option; shows fingerprints and scratches more readily
Optional Table: Finish Comparison
| Finish | Sheen / Reflectivity | Grain | Protective Film | Notes |
| 2B Mill | Low sheen | None | No | Industrial standard |
| 2D Mill | Matte | None | No | Rougher than 2B |
| #4 Brushed | Satin | Visible | Yes | Cosmetic and functional |
| #8 Mirror | High | Polished out | Yes | Most cosmetic option |
Applications of Stainless Steel Sheets
- Industrial & Architectural: Panels, railings, enclosures, machinery.
- Food & Pharmaceutical: Countertops, sinks, processing equipment, hygienic environments.
- Marine & Washdown Areas: Saltwater and chemical resistance for coastal or washdown applications.
- High-Temperature Areas: Furnaces, ovens, heat exchangers.
- Automotive & Appliances: Trim, panels, equipment liners.
How to Choose the Right Stainless Steel Sheet
- Environment & Exposure: Determine whether the sheet will be used indoors, outdoors, in marine or chemical environments, or under high temperatures.
- Required Corrosion Resistance: Match your needs to 304, 316/316L, or 309.
- Surface Finish: Consider functional vs cosmetic; choose between #4 Brushed, #8 Mirror, or industrial 2B/2D finishes.
- Cost-effectiveness: Balance budget and performance requirements.
- Consult Supplier: For special alloys, tight tolerances, or specific grain orientation, reach out to your supplier.
Help Choosing & Ordering
- #4 Brushed and #8 Mirror finishes ship one side only
- Grain direction is selectable for #4 Brushed finishes
- Light surface marks or dullness are normal for 2B/2D finishes
- Other alloys or custom sizes are available via special order
- Delivery times vary depending on alloy and finish
Conclusion
Stainless steel sheets are essential materials for a wide range of industrial, commercial, and architectural applications. Understanding types, grades, finishes, and applications ensures your project achieves both functional performance and desired aesthetics. Combine your environmental needs, surface finish preference, and budget considerations to make the right choice, and always consult your supplier for special requirements.Contact Hanhuang Steel for custom sizes, finishes, and alloys—get the right stainless steel sheet for your project today.
